How to Specify a Custom Fuel Cell MEA

A useful custom fuel cell MEA specification should define more than external dimensions. It should describe the application, layer structure, active area, membrane, anode and cathode catalyst layers, gas diffusion layers, sealing concept, operating conditions, and acceptance requirements. These details allow an MEA manufacturer to recommend compatible materials, prepare an accurate quotation, and build samples that can be evaluated in the customer’s actual cell hardware. The best specification sets clear requirements without assuming that one membrane, catalyst loading, or GDL will suit every PEM fuel cell.

Why a Clear Fuel Cell MEA Specification Matters

The membrane, catalyst layers, and gas diffusion media work as one electrochemical system. A change in membrane thickness can affect resistance, crossover, handling, and sealing. Catalyst loading influences cost and reaction capacity, while GDL and microporous-layer choices affect gas transport, electrical contact, compression, and water management. For this reason, a drawing alone is rarely enough. The supplier also needs the intended operating window and the customer’s performance priorities.

Custom Fuel Cell MEA Specification at a Glance

Specification area

Information to provide

Why it matters

Application

Fuel cell type, stack power, use case, and duty cycle

Defines the performance and durability target.

MEA architecture

CCM, 3-layer, 5-layer, or framed MEA

Confirms which layers and processing steps are included.

Dimensions

Active area, outer size, shape, holes, orientation, and tolerances

Controls alignment, sealing, and current density calculations.

Membrane

Grade, thickness, reinforcement, or required properties

Affects resistance, crossover, strength, and handling.

Catalyst layers

Anode/cathode catalyst, metal loading, ionomer, and coating area

Affects kinetics, cost, interfaces, and utilization.

GDL and MPL

Grade, thickness, PTFE treatment, MPL, and side orientation

Affects transport, contact, water management, and compression.

Sealing

Frame or gasket material, thickness, adhesive, and hole pattern

Controls gas sealing and compressed layer geometry.

Validation

Inspection, traceability, test protocol, and acceptance criteria

Creates a common basis for sample approval and production.




Start With the Application and Cell Design

Begin with the PEM fuel cell type and end use: laboratory testing, open-cathode backup power, portable equipment, mobility, or another application. Provide the target stack power, cell count if known, expected current-density range, continuous or cyclic duty, and the cell hardware or flow-field design. If the project is replacing an existing MEA, share the current drawing, bill of materials, test conditions, and the performance problem you want to solve.

Define the MEA Architecture

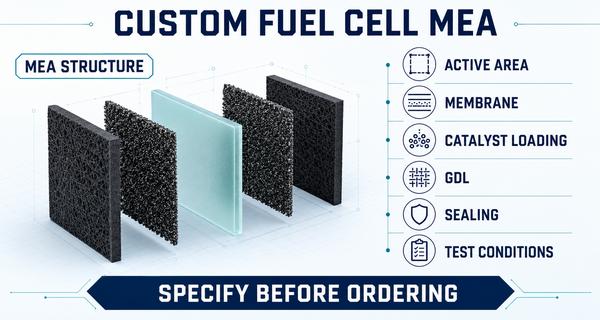

State exactly what the supplier should deliver. In common purchasing language, a catalyst-coated membrane or 3-layer MEA contains the membrane and two catalyst layers. A 5-layer MEA adds an anode GDL and a cathode GDL. A seal frame may be added to either format but is not always counted as part of the layer number. Because terminology varies, show every included component in the drawing and quotation.

For a detailed structural comparison, see 3-Layer MEA vs 5-Layer MEA: What Is the Difference?.

Specify Dimensions, Active Area, and Tolerances

Provide a dimensioned drawing rather than only stating an active area in square centimeters. Mark the catalyst-coated area, membrane or frame outline, GDL outline, manifold holes, locating features, anode/cathode orientation, and any no-coating zones. Define tolerances that the cell design genuinely needs. Also identify whether the active area is rectangular, circular, segmented, or matched to a special flow field.

·      MEA external length and width, including corner radii

·      Catalyst-coated active-area length, width, and position

·      GDL dimensions and any required offset from the catalyst area

·      Hole diameter, center position, orientation marks, and datum

·      Thickness and dimensional tolerances after final assembly

Select the Proton Exchange Membrane

If a membrane grade is already qualified, identify the manufacturer, grade, nominal thickness, and reinforcement type. If not, provide the operating conditions and priorities so the supplier can propose candidates. Important factors include proton conductivity, gas crossover, mechanical strength, chemical durability, humidity range, temperature, differential pressure, and handling during coating and assembly. A thinner membrane may reduce ionic resistance, while a thicker or reinforced membrane may provide more handling and crossover margin; the final choice must be validated in the intended cell.

For one common thickness comparison, see Nafion NR211 vs NR212: How to Choose a PEM Fuel Cell Membrane.


H2Gatech  |  English Website Publishing Copy

Define Catalyst Type and Loading Correctly

Specify the anode and cathode separately. For a conventional hydrogen–air PEM fuel cell, the request may identify a supported platinum catalyst such as Pt/C, its platinum weight percentage, the platinum loading in mgPt/cm², and the coated area. Do not use “0.3 mg/cm²” without stating whether it means platinum metal or total catalyst powder. These are different quantities.

Loading example: At 40 wt% Pt/C, a target of 0.30 mgPt/cm² corresponds theoretically to 0.75 mg/cm² of dry Pt/C catalyst powder before ionomer is added. The finished electrode formulation also contains ionomer and may include other components, so the RFQ should name the measurement basis explicitly.

Specify the GDL and Microporous Layer

For a 5-layer MEA, identify the GDL grade on each side or provide target properties. Useful fields include carbon paper or cloth substrate, nominal thickness, PTFE treatment, presence and orientation of the microporous layer, permeability, electrical resistance, and compressed thickness. The anode and cathode do not have to use identical GDLs. Selection should reflect the flow field, clamping pressure, humidity, current density, and expected water-production rate.

Define the Seal Frame and Gasket Interface

Clarify whether the supplier should deliver an unframed CCM, a framed CCM, a framed 5-layer MEA, or a separate gasket. A bonded frame around the membrane is not automatically the same component as the compressible gasket between the MEA and bipolar plate. Specify frame or gasket material, total thickness, adhesive layer, bonding area, hole pattern, chemical compatibility, and the target compressed geometry. Uneven overlap or an incorrect thickness stack can create leakage, local stress, or poor electrical contact.

Provide the Operating Conditions

MEA materials should be selected against the real operating window, not only a room-temperature polarization test. Provide both nominal and maximum conditions wherever possible:

·      Hydrogen and air or oxygen composition, purity, and expected contaminants

·      Cell temperature, inlet humidity, pressure, and differential pressure

·      Gas flow or stoichiometry, current-density range, and voltage limits

·      Continuous, cycling, start–stop, purge, freeze-start, or storage requirements

·      Target life, allowable degradation, and critical safety limits

Agree on Inspection and Acceptance Requirements

Before sample production, agree on what will be measured and how acceptance will be decided. Possible controls include external dimensions, active-area position, visual defects, membrane or frame damage, catalyst loading by an agreed method, thickness, mass, electrical checks, leak testing, packaging, and lot traceability. Electrochemical performance should be evaluated using a defined cell, compression, break-in procedure, gas conditions, temperature, humidity, and polarization protocol. Otherwise, results from two laboratories may not be directly comparable.


Frequently Asked Questions

What is the minimum information needed for a custom MEA quotation?

At minimum, provide the application, MEA architecture, active area and external dimensions, membrane preference, anode and cathode catalyst loading, GDL requirement, sealing concept, operating conditions, and sample quantity. A drawing and target test protocol will improve quotation accuracy.

Can the MEA manufacturer recommend the membrane and GDL?

Yes, but the recommendation is only as useful as the information supplied. Share the temperature, humidity, pressure, flow field, compression, current-density target, durability goal, and cost priority. Final approval should come from testing in the intended cell and duty cycle.

Should a buyer specify the manufacturing process?

Usually the buyer should define the finished structure, critical materials, dimensions, inspection requirements, and performance acceptance criteria. Process details such as coating or bonding method need to be specified only when they are critical to qualification, intellectual property, or compatibility with an existing approved design.

Can H2Gatech support samples before volume production?

H2Gatech supports customized MEA configurations for research, fuel cell development, and production projects. Sample scope, testing, documentation, and scale-up requirements should be agreed according to the drawing and project stage.

Request a Custom Fuel Cell MEA Review

To request a custom fuel cell MEA, send H2Gatech your drawing, operating conditions, catalyst-loading basis, membrane and GDL preferences, seal-frame requirements, sample quantity, and target validation method. View H2Gatech membrane electrode assembly solutions or contact H2Gatech for a specification review.
