The difference between 40%, 60%, and 70% Pt/C is the mass fraction of platinum in the dry supported catalyst powder. It does not directly state the finished electrode's platinum loading, activity, thickness, or durability. At the same target in mgPt/cm², a higher Pt percentage requires less Pt/C powder and introduces less carbon into the catalyst layer. That changes the formulation window, ionomer calculation, pore structure, coating behavior, and potentially mass transport. The best grade is therefore the one that can be formulated and validated for the complete membrane electrode assembly—not simply the powder with the highest platinum percentage.

For the complete RFQ workflow, see How to Specify a Custom Fuel Cell MEA.

What Does 40 wt%, 60 wt%, or 70 wt% Pt/C Mean?

A nominal 40 wt% Pt/C powder contains approximately 40% platinum and 60% carbon support by mass. A 60 wt% grade contains approximately 60% platinum and 40% carbon, while a 70 wt% grade contains approximately 70% platinum and 30% carbon. For controlled production, calculations should use the certified metal assay for the specific batch rather than assuming the nominal value is exact.

Do not confuse two percentages: Pt/C weight percentage describes the catalyst powder. Finished platinum loading describes the amount deposited per coated area, usually in mgPt/cm². Either a 40% or a 70% powder can be used to reach the same finished Pt loading by changing the powder mass.

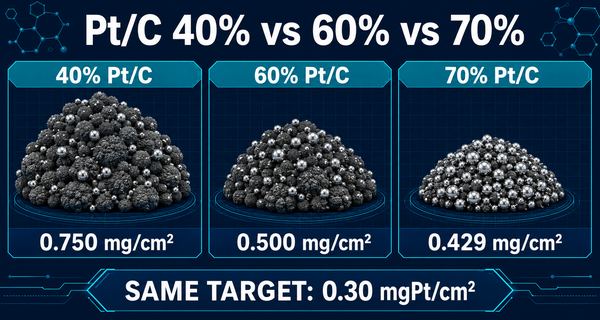

Comparison at the Same 0.30 mgPt/cm² Target

The calculation is: Pt/C powder loading = target Pt loading ÷ Pt mass fraction. The table is a theoretical dry-material comparison before ionomer, additives, and process losses are included. It shows why changing only the Pt/C percentage while keeping the same ink recipe can unintentionally change the catalyst-layer composition.

Why a Higher Pt Percentage Is Not Automatically Better

Catalyst performance depends on more than the bulk Pt percentage. Platinum particle size and distribution, electrochemically active surface area, catalyst activity, carbon surface area and porosity, graphitization, impurities, ionomer contact, and the final electrode structure all matter. Commercial catalyst portfolios therefore provide multiple precious-metal percentages and support types for different performance and durability requirements.

A higher Pt percentage can reduce the amount of supported powder needed for a given mgPt/cm² target, which may support a thinner layer. However, it also reduces the carbon present at that target. Less carbon changes electronic pathways, pore volume, ink rheology, and the amount of ionomer produced by an I/C-based formulation. Whether that change improves or harms a real electrode depends on the selected catalyst and coating process.

When 40 wt% Pt/C Can Be a Practical Starting Point

A 40 wt% Pt/C grade provides more carbon mass at the same Pt loading than 60% or 70% material. It can be useful during laboratory development when the team wants a supported catalyst with a comparatively larger carbon contribution and a familiar formulation window. It may also suit an electrode design in which the resulting powder mass and layer structure are already qualified.

·Advantages to evaluate: broader carbon-supported structure, straightforward powder handling, and compatibility with established low-to-moderate Pt/C formulations.

·Trade-offs to evaluate: more powder must be coated for the same Pt loading, and the resulting layer may be thicker depending on formulation and consolidation.

·Do not assume: 40 wt% is always more durable. Carbon support type and operating potential are critical to carbon-corrosion behavior.

When 60 wt% Pt/C May Offer a Balanced Route

At the same Pt loading, 60 wt% Pt/C reduces catalyst powder mass and carbon content relative to 40 wt% material without moving as far as a 70 wt% formulation. It can be considered when the design needs a higher metal concentration but still relies on a supported-catalyst network. Supplier portfolios commonly include high-surface-area carbon products with precious-metal content extending to about 60 wt%, but the exact grade, surface area, activity, and durability must be checked on its data sheet and certificate.

·Advantages to evaluate: lower powder mass per unit Pt, potential for a more compact layer, and a middle formulation point between 40% and very high Pt content.

·Trade-offs to evaluate: reduced carbon mass and a changed ionomer requirement compared with a 40 wt% baseline.

When 70 wt% Pt/C May Be Considered

A 70 wt% Pt/C catalyst supplies a high platinum concentration in a relatively small amount of supported powder. It may be considered for compact high-metal-content electrode designs or specialized manufacturing routes. TANAKA's published electrocatalyst portfolio, for example, includes a 70 wt% Pt/C grade alongside lower-percentage catalysts, confirming that high-Pt supported products are commercially relevant—not that one grade is universally preferred.

·Advantages to evaluate: the lowest supported-powder and carbon mass of the three examples for a fixed mgPt/cm² target.

·Trade-offs to evaluate: less carbon framework, a narrower formulation window in some processes, and greater sensitivity to dispersion, coating uniformity, and electrode design.

·Do not assume: high Pt wt% guarantees high ECSA or better cell voltage. Those properties must be measured for the actual catalyst and MEA.

Recalculate Ionomer Whenever the Pt/C Percentage Changes

If an ink is specified using an ionomer-to-carbon mass ratio, or I/C, changing the Pt/C percentage changes the dry ionomer amount even when mgPt/cm² remains constant. At 0.30 mgPt/cm² and I/C = 0.80, the theoretical values are:

These figures are calculation examples, not universal recipes. The optimal ionomer amount depends on catalyst surface chemistry, pore structure, solvent system, dispersion method, coating process, membrane interface, and operating conditions. Re-optimize the ink and electrode instead of transferring a fixed recipe by catalyst-powder mass.

Carbon Support Type Can Matter More Than the Percentage

Two catalysts marked 40 wt% Pt/C can perform differently because the carbon supports and platinum nanoparticles are different. Relevant supplier data include carbon surface area, pore structure, degree of graphitization, Pt particle size and distribution, ECSA, mass activity, impurity limits, and accelerated-stress-test results. Graphitized carbon may be selected for improved resistance to carbon corrosion, while high-surface-area carbon can support high Pt dispersion and activity; the choice is application-specific.

DOE-supported durability work has examined Pt/C ratios, carbon-support types, ionomer loading, catalyst loading, operating humidity, temperature, and potential as interacting variables. This is a useful reminder that a single Pt percentage cannot predict durability by itself.

Select the Anode and Cathode Separately

The hydrogen-oxidation anode and oxygen-reduction cathode have different kinetics, transport demands, contamination risks, and loading targets. Do not specify one Pt/C percentage for the entire MEA unless both sides have actually been qualified that way. For reformate or contaminant-tolerant anodes, PtRu/C or another catalyst may be required; its metal ratio and loading basis must be stated separately. The cathode may prioritize ORR activity, high-current-density transport, and long-term stability.

To confirm which layers and electrode sides are included in a purchase, read CCM vs MEA: What Fuel Cell Buyers Should Specify.

Pt/C Selection Checklist for an RFQ

A Practical Qualification Plan

When no catalyst grade has been qualified, compare a small, controlled matrix rather than changing multiple variables at once. Keep membrane, active area, finished Pt loading, GDL, compression, break-in procedure, gas conditions, humidity, and test protocol consistent. Re-optimize each ink sufficiently to produce a coherent layer, then compare coating uniformity, XRF loading, thickness, polarization behavior, high-current-density performance, ECSA or other agreed diagnostics, and durability screening.

·Record catalyst batch, metal assay, ink solids, solvent ratio, mixing energy, coating method, drying conditions, and yield.

·Compare beginning-of-life performance and at least one durability-relevant protocol; do not select from a single polarization curve alone.

·Freeze the approved catalyst grade and formulation in the drawing or bill of materials, with a written change-control process.

For related outgoing controls, see Fuel Cell MEA Quality Inspection Before Shipment.

H2gatech Engineering Note: Specify the Result, Not Just the Powder

Engineering note: A clear request states the electrode side, catalyst manufacturer and grade, certified Pt percentage, carbon-support type, target mgPt/cm², active area, ionomer basis, coating geometry, loading tolerance, and validation method. H2gatech can then evaluate whether 40%, 60%, 70%, or another catalyst system fits the proposed CCM or MEA. Final selection should be confirmed in the customer's cell hardware and operating window.

Frequently Asked Questions

Does 70 wt% Pt/C contain more platinum in the finished MEA?

Not necessarily. It contains more Pt per gram of catalyst powder, but the finished Pt loading depends on how much powder is deposited. A 40%, 60%, or 70% catalyst can each be coated to 0.30 mgPt/cm² by adjusting the powder amount.

Will 70 wt% Pt/C always make the catalyst layer thinner?

It reduces supported-catalyst powder mass at the same Pt loading, which may support a thinner layer. Actual thickness also depends on ionomer, additives, porosity, solids concentration, deposition method, drying, and consolidation. Measure the finished electrode rather than assuming a thickness.

Can the same I/C ratio be used for all Pt/C percentages?

The same numerical I/C ratio produces different dry ionomer loadings because the carbon mass changes. It may be used as a controlled experimental basis, but each catalyst and ink should be optimized and validated rather than transferred without testing.

Is 40 wt% Pt/C better for durability?

The percentage alone cannot answer that question. Durability depends on the carbon-support type, platinum particles, electrode structure, ionomer, operating potential, humidity, temperature, start-stop conditions, and the selected accelerated-stress protocol.

What information is needed to compare two Pt/C grades?

Request the certified metal content, support description, particle-size information, ECSA or activity data, impurity limits, recommended processing guidance, and durability evidence. Then compare them in matched MEAs at the same finished Pt loading and test conditions.

Request a Pt/C Catalyst and MEA Specification Review

H2gatech supports customized catalyst-coated membranes and membrane electrode assemblies using Pt/C, Pt black, PtRu/C, and application-specific catalyst systems. Send the catalyst grade or target Pt percentage, separate anode and cathode loadings, active-area drawing, membrane, ionomer requirement, operating conditions, sample quantity, and acceptance method. Explore H2gatech membrane electrode assembly solutions or contact H2gatech for a specification review.
