H2Gatech 5000W Fuel Stack
H2Gatech 5000W Hydrogen Fuel Cell System is a 5 kW–class PEM fuel cell power platform engineered for vehicle-mounted applications and high-reliability backup power scenarios. It is designed to deliver sustained electrical output for demanding operating conditions where conventional battery systems fall short.
The 5kW system is well-suited for hydrogen-powered sightseeing and tourist vehicles, providing clean, quiet propulsion support for parks, resorts, and scenic areas where low noise and zero emissions are essential. It is also an effective solution for emergency and standby power, ensuring a continuous electricity supply for critical equipment during outages or in off-grid locations.

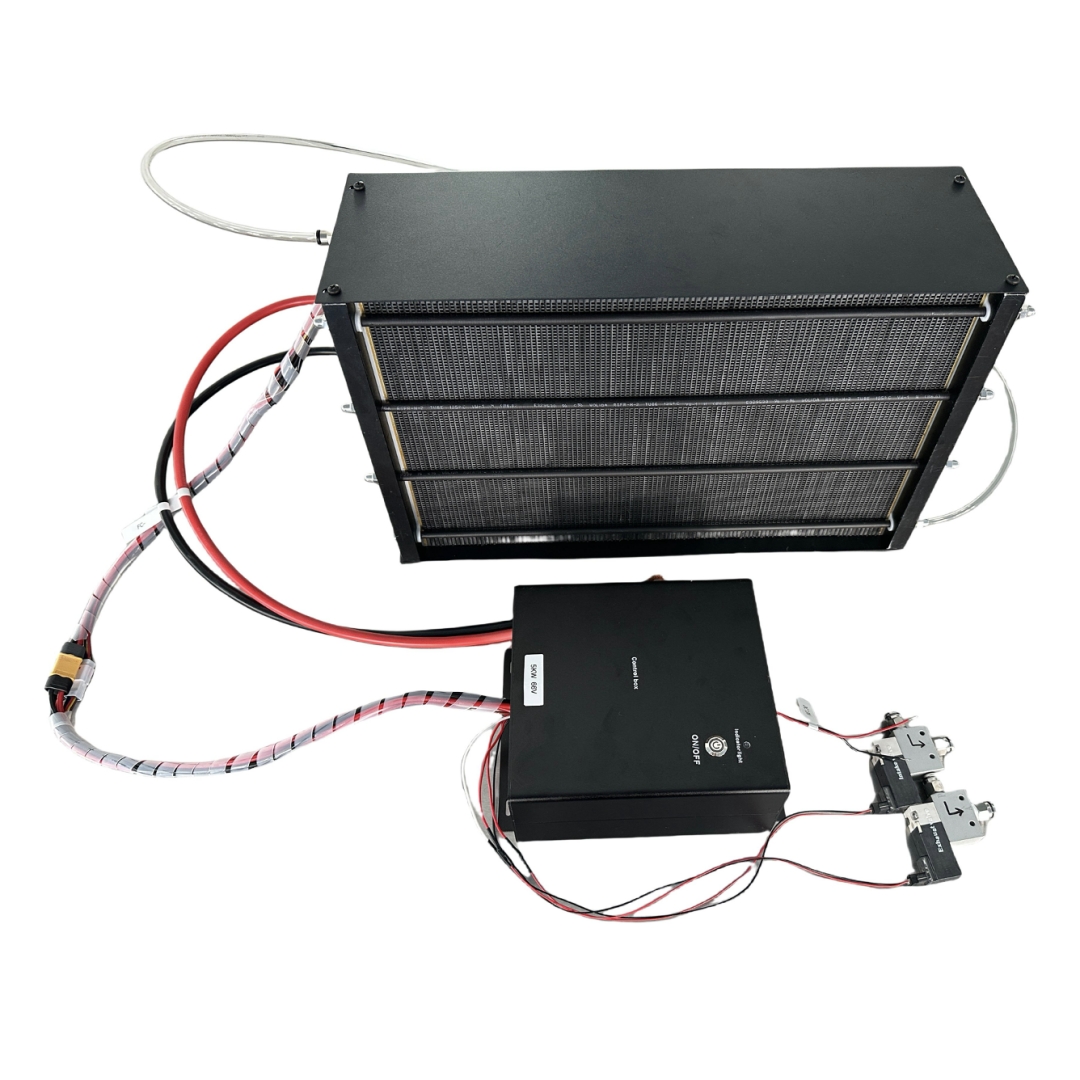

Component List:
1. Fuel cell stack (including fan)
2. Fuel cell controller
3. TPU or PTFE tubing
4. Intake solenoid valve
5. Pressure sensor
6. Current sensor
5000W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell
H2Gatch fuel cells provide a high-efficiency alternative to combustion. By directly converting hydrogen into electricity through an electrochemical process, our systems deliver silent, zero-emission power. Experience superior energy density and reliable performance for all your clean energy needs.
Number of Cells
This fuel cell stack is composed of 110 fuel cells.
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from -5~35° C.
Humidification
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs g.
Controller Weight
The weight of the controller is g.
System Efficiency
At 12 volts the efficiency of the system is over 40%.
External power supply
It can be provided by H2Gatech or sourced by the customer.
Zero-Emission Power via Hydrogen
Experience the efficiency of combustion-free power. Hydrogen fuel cells directly convert chemical energy into high-quality DC electricity, offering a silent and eco-friendly alternative to conventional generators. Whether deployed as a portable power bank for field research or a robust backup system for telecommunications, hydrogen provides a versatile, renewable energy source that never compromises on performance. H2Gatech delivers this clean power in a compact, maintenance-free package, making sustainable energy accessible in any environment.
Hydrogen Power for a Sustainable Future
Modern energy demands require more than what traditional, noisy, and high-maintenance combustion systems can offer. H2Gatech fuel cell stacks provide a maintenance-free energy source that operates with near-silent performance and high energy density. From portable power supplies to backup systems for telecommunications, our electrochemical technology ensures that energy is produced exactly where it’s needed, without the waste associated with fossil fuels. Embrace the future of distributed energy with a technology that is as versatile as it is clean.

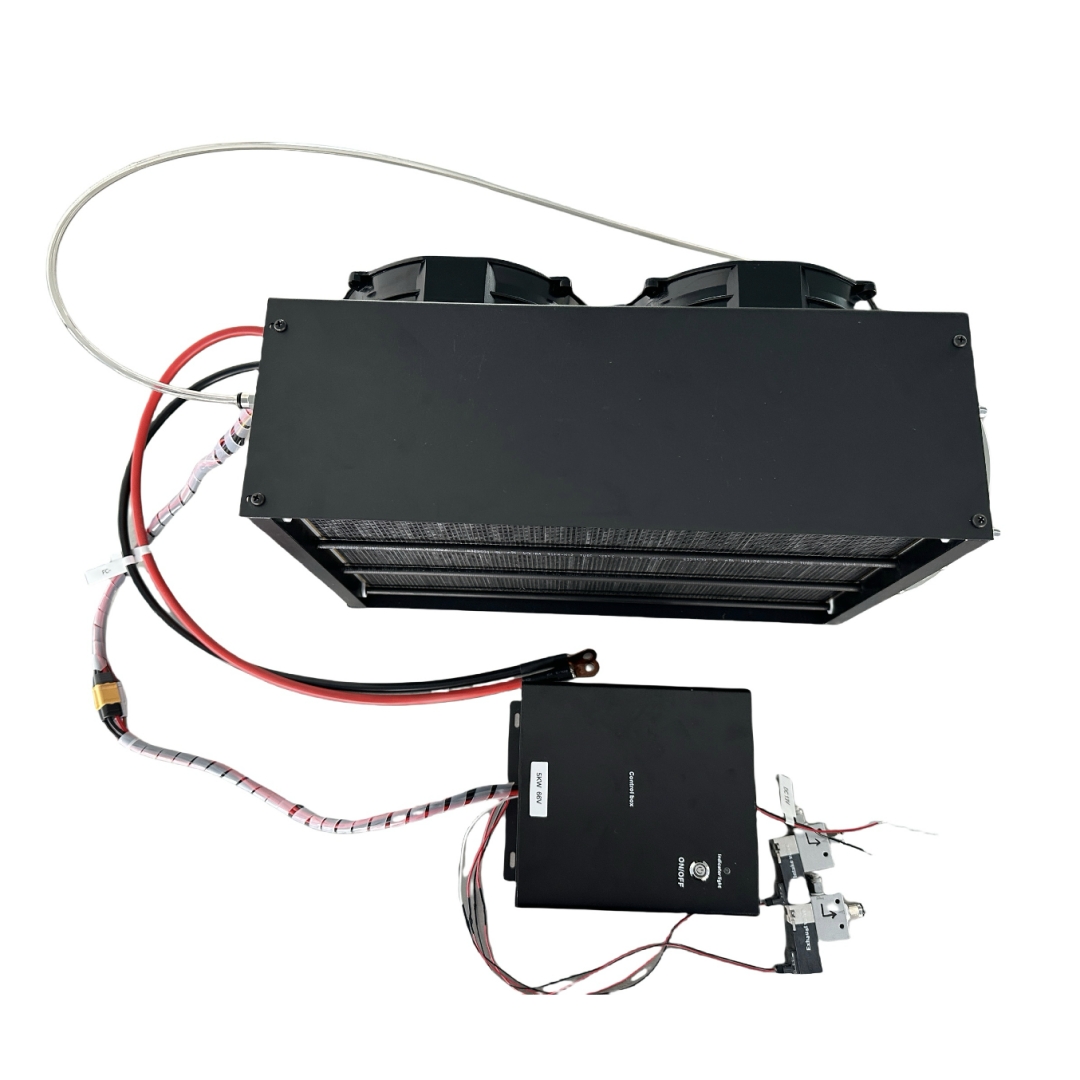

H2Gatech 5000W Fuel Stack Components List:
5000W Fuel cell stack (including fan)
5000W Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor
H2Gatech 5000W Fuel Stack Performance

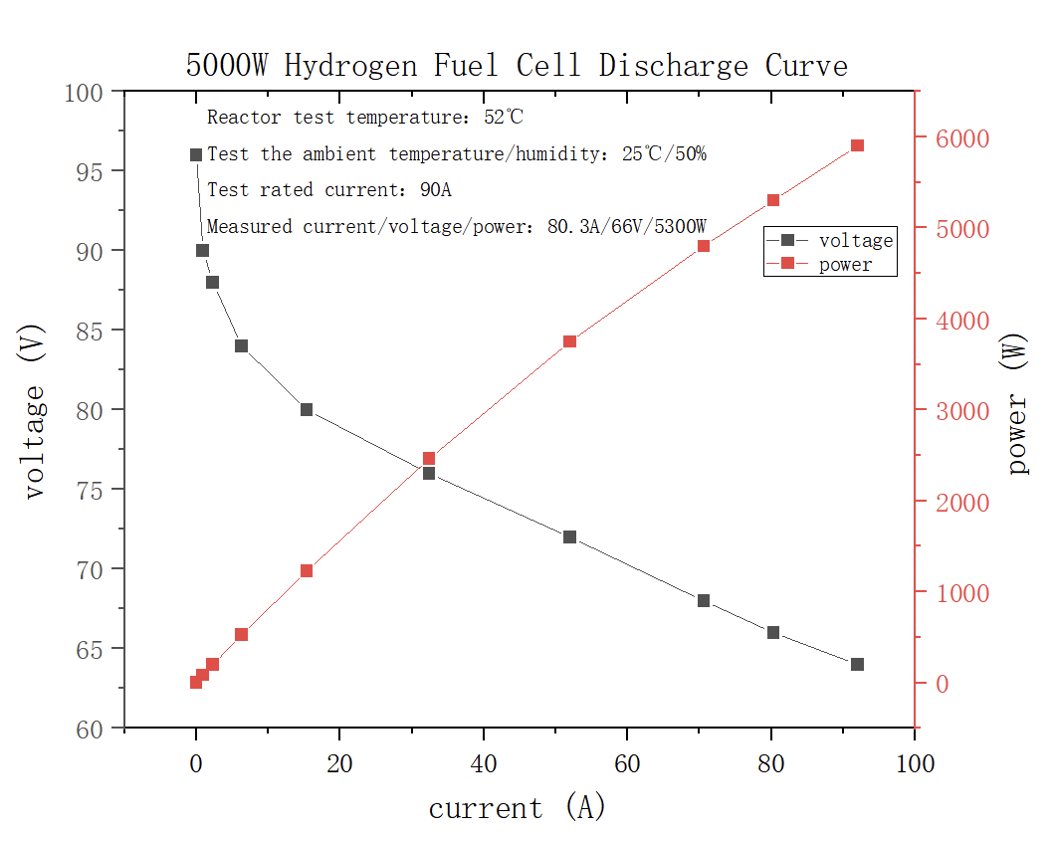

The following polarization curve is an examplary performance for this stack.The H2Gatech 5000W Fuel Cell Stack uses PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.
Applications of H2Gatech 5000W Fuel Cell Stack
Hydrogen-powered sightseeing and tourist vehicles
Emergency and standby backup power systems
Hydrogen fuel cell support power for UAVs / drones
Four-wheel electric utility vehicles
Forklifts and light industrial vehicles
Mobile and off-grid power supply systems
Fuel Stack Manufacture
Stay ahead of the energy transition with H2Gatech’s next-gen fuel cell technology. We manufacture premium hydrogen stacks that provide zero-emission power for a cleaner tomorrow. Our stacks are designed for high efficiency and minimal environmental impact, making H2Gatch the preferred choice for eco-conscious developers. Join the hydrogen revolution with our innovative fuel cell solutions.
| Output Performance | |
|---|---|
| Power | 5000 W |
| Operating Voltage | 55 V – 99 V |
| Operating Current | 0 A – 90 A |
| Efficiency | > 40% |
| Fuel | |
| Hydrogen Consumption | 77 L/min (at 90 A) |
| Hydrogen Purity | ≥ 99.99% (CO < 1 ppm) |
| Hydrogen Pressure | 0.035 MPa – 0.05 MPa |
| Working Environment | |
| Ambient Temperature | 0 – 35 ℃ |
| Ambient Humidity | 10% – 90% |
| Storage Environment | 0 – 60 ℃ |
| Physical Parameters | |
| Number of Cells | 110 |

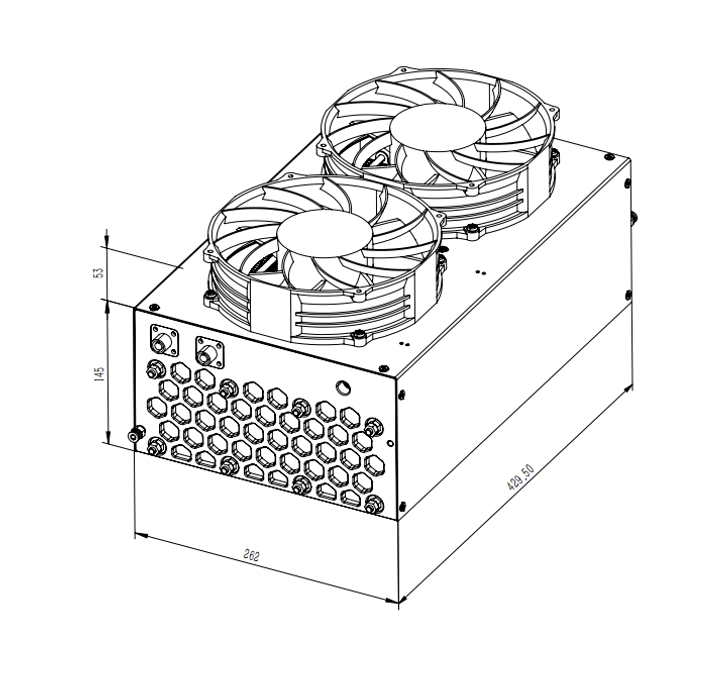

| Stack Dimensions | 198 × 262 × 429.5 mm |
| Weight | 14,000 g |
