H2Gatech 3000W Fuel Stack
H2Gatech 3000W Hydrogen Fuel Cell System is a 3 kW–class PEM fuel cell power solution developed for light-duty electric vehicles and high-capacity mobile energy applications. Positioned above portable fuel cell units, it is designed to support sustained power demand in real operating environments.
With the ability to handle higher electrical loads, the 3000W system is well suited for small four-wheel electric vehicles, golf carts, and hydrogen-powered forklifts, where continuous power availability and rapid refueling are essential for daily use. It can also function as a mobile hydrogen power source for field operations and temporary installations.
Instead of relying on large battery banks, the 3kW fuel cell enables on-demand electricity generation with low noise and zero exhaust emissions. This makes it suitable for mobile power stations, backup power systems, and off-grid energy supply in warehouses, campuses, outdoor sites, and emergency scenarios.
Component List:
Fuel cell stack (including fan)
Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor
3000W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell
Switch to clean electricity production with H2Gatech. Our hydrogen fuel cells eliminate combustion, emitting only water vapor. From portable power stations to backup energy, we offer a sustainable, low-carbon solution for modern industrial and commercial applications.
Number of Cells
This fuel cell stack is composed of 80 fuel cells.
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from -5~35° C.
Humidification
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs 8000g.
Controller Weight
The weight of the controller is g.
System Efficiency
At 12 volts the efficiency of the system is over 40%.
External power supply
It can be provided by H2Gatech or sourced by the customer.
Hydrogen Energy, Simplified
Fueling the transition to a net-zero future, hydrogen technology stands as the cornerstone of the modern energy revolution. As a renewable and non-toxic energy carrier, hydrogen offers a scalable pathway to decarbonize everything from remote IoT networks to urban infrastructure. Our fuel cell systems transform this abundant element into reliable, on-demand power, eliminating the noise and pollution of fossil fuels. With H2Gatech, adopting sustainable energy is no longer a future goal—it is a practical, high-efficiency reality for today’s power-critical applications.
A Cleaner Way to Hydrogen Energy
In the global race toward decarbonization, hydrogen stands out as the ultimate clean energy carrier. While traditional power systems release significant carbon emissions and noise pollution, H2Gatech hydrogen fuel cells offer a zero-emission power solution with only pure water as a byproduct. By removing the combustion element, we provide a silent and eco-friendly alternative that significantly lowers your carbon footprint. Our fuel cell stacks empower industries to meet environmental mandates without sacrificing reliability, making sustainable energy a practical reality for the modern world.
H2Gatech 3000W Fuel Stack Components List:
3000W Fuel cell stack (including fan)
3000W Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor
H2Gatech 3000W Fuel Stack Performance

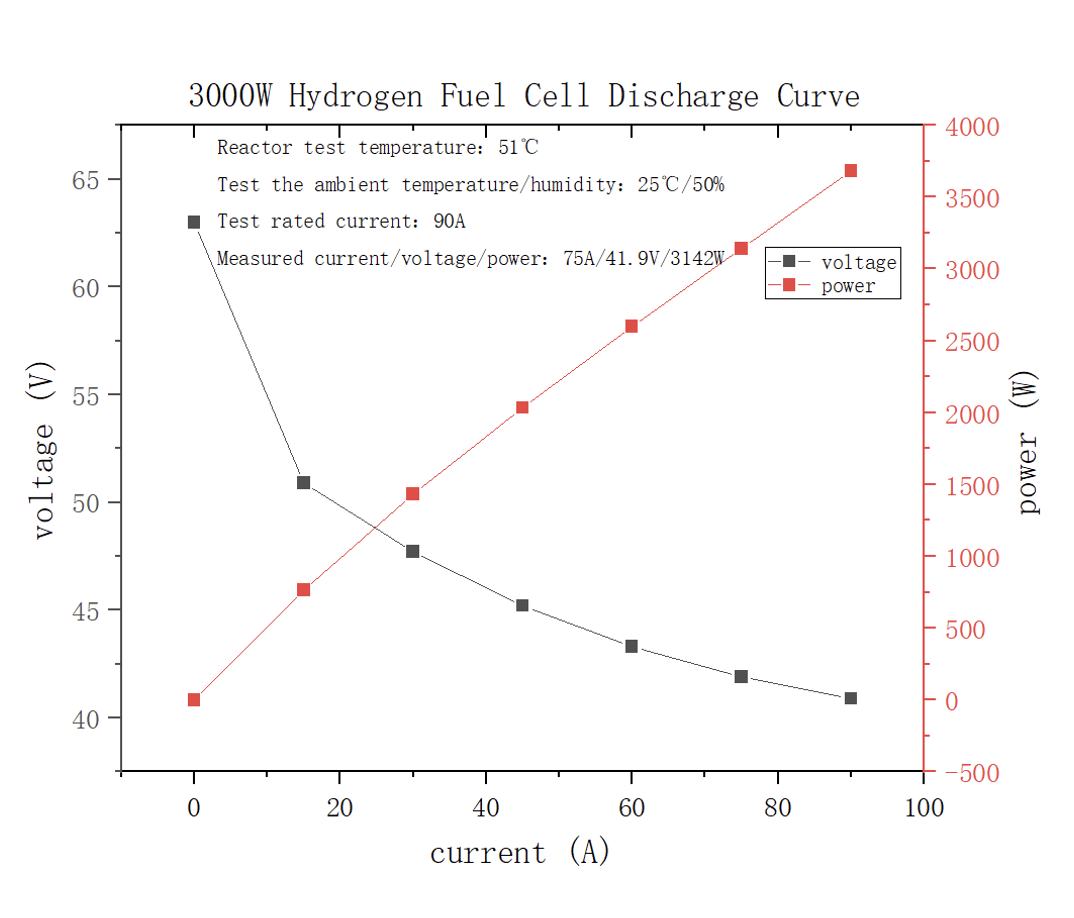

The following polarization curve is an examplary performance for this stack.The H2Gatech 3000W Fuel Cell Stack uses PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.
Applications of H2Gatech 3000W Fuel Cell Stack
Small four-wheel electric vehicles
Golf carts and light utility vehicles
Hydrogen-powered forklifts
Portable hydrogen fuel cell power stations
Mobile and standby backup power systems
Off-grid and temporary power supply
Fuel Stack Manufacturer
Looking to source professional fuel cell stacks at a competitive price? H2Gatech offers a full range of high-output hydrogen stacks for commercial and industrial applications. We bridge the gap between high-end performance and cost-effectiveness. Contact H2Gatch today for bulk pricing and custom OEM manufacturing options tailored to your business needs.
| Output Performance | |
|---|---|
| Power | 3000 W |
| Operating Voltage | 40 V – 76 V |
| Operating Current | 0 A – 90 A |
| Efficiency | > 40% |
| Fuel | |
| Hydrogen Consumption | 40 L/min (at 90 A) |
| Hydrogen Purity | ≥ 99.99% (CO < 1 ppm) |
| Hydrogen Pressure | 0.035 MPa – 0.05 MPa |
| Working Environment | |
| Ambient Temperature | 0 – 35 ℃ |
| Ambient Humidity | 10% – 90% |
| Storage Environment | 0 – 60 ℃ |
| Physical Parameters | |
| Number of Cells | 80 |
| Stack Dimensions | 350 × 150 × 205 mm |
| Weight | 8000 g |
