Professional hydrogen fuel cells manufacturer dedicated to the Hydrogen Fuel Cell membrane electrode (MEA), hydrogen fuel cell stack system, and other related equipment.

Hydrogen Fuel Cell Stacks

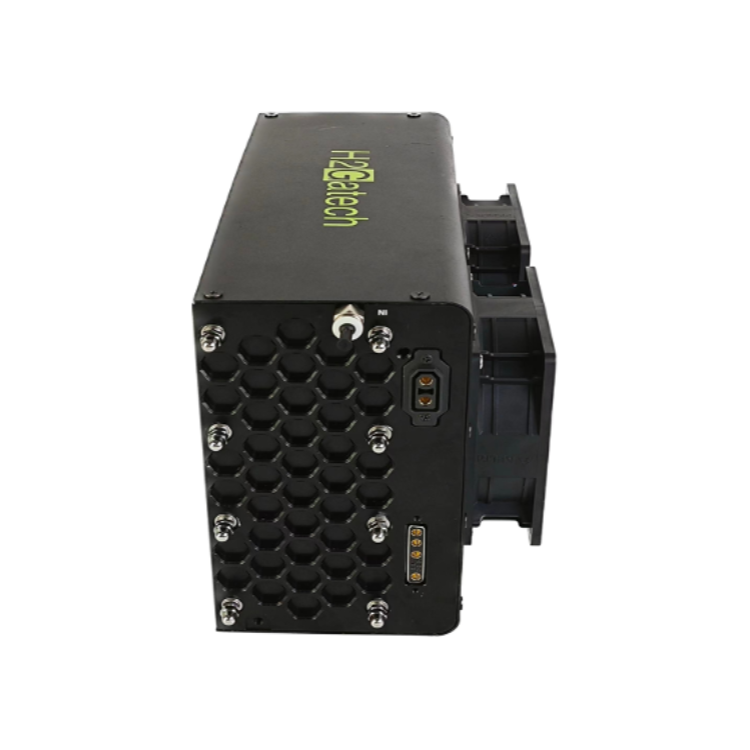

H2Gatech 2000W Fuel Stack

H2Gatech 2000W Hydrogen Fuel Cell Stack is a 2 kW-class PEM fuel cell system developed for vehicle-level propulsion support and high-capacity mobile energy supply. It addresses applications that require continuous power delivery beyond the limits of portable fuel cell units.

Capable of sustaining higher electrical loads, the 2000W system is well matched with hydrogen-powered forklifts, three-wheel logistics vehicles, and golf carts, where steady power availability and fast refueling are critical to daily operation. It can also serve as a ground-based hydrogen power source for UAV operations, supporting charging and mission deployment in field environments.

Rather than relying on large battery packs, the 2000W fuel cell enables on-demand energy generation with low acoustic output and zero exhaust emissions. This makes it suitable for outdoor mobile backup power, industrial sites, warehouses, campuses, and temporary off-grid installations where noise, emissions, and downtime must be minimized.

Component List:

  • Fuel cell stack (including fan)

  • Fuel cell controller

  • TPU or PTFE tubing

  • Intake solenoid valve

  • Pressure sensor

  • Current sensor


Get a Quote Get a Quote
H2Gatech 2000W Fuel Stack

2000W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell

Fuel cells offer a modern solution for clean electricity production by using hydrogen as the energy source. Through an electrochemical conversion process, they transform chemical energy directly into usable electrical power, delivering efficient operation with no harmful emissions.

Get a Quote Get a Quote
H2Gatech 2000W Fuel Stack

Number of Cells

This fuel cell stack is composed of 80 fuel cells.

H2Gatech 2000W Fuel Stack

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

H2Gatech 2000W Fuel Stack

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from -5~35° C.

H2Gatech 2000W Fuel Stack

Humidification

This fuel cell stack uses self-humidification.

H2Gatech 2000W Fuel Stack

FC Stack Weight

The stack (including fan and casing) weighs g.

H2Gatech 2000W Fuel Stack

Controller Weight

The weight of the controller is g.

H2Gatech 2000W Fuel Stack

System Efficiency

At 12 volts the efficiency of the system is over 40%.

H2Gatech 2000W Fuel Stack

External power supply

It can be provided by H2Gatech or sourced by the customer.

Bringing Hydrogen Energy to Life

Hydrogen is more than just an element; it is a sustainable energy carrier designed for a carbon-neutral future. Unlike fossil fuels, hydrogen is non-toxic, abundant, and can be produced from renewable sources. H2Gatech fuel cell stacks harness this versatility to provide a clean power supply for everything from remote IoT sensors to large-scale backup systems. By integrating hydrogen technology today, businesses can transition to a low-carbon energy model that is both practical for current operations and scalable for future growth.

Get a Quote Get a Quote
H2Gatech 2000W Fuel Stack
H2Gatech 2000W Fuel Stack

Advancing Clean Energy Through Hydrogen

Unlike conventional internal combustion engines that suffer from thermal and mechanical energy loss, H2Gatech fuel cells leverage an advanced electrochemical process to achieve maximum energy conversion efficiency. By directly transforming hydrogen into electricity, our systems eliminate the inefficiencies of burning fossil fuels. This combustion-free technology not only reduces heat dissipation but also provides a stable, high-performance power source for critical infrastructure. Transitioning from traditional generators to PEM fuel cell technology means choosing a smarter, quieter, and more efficient path to power.

Get a Quote Get a Quote

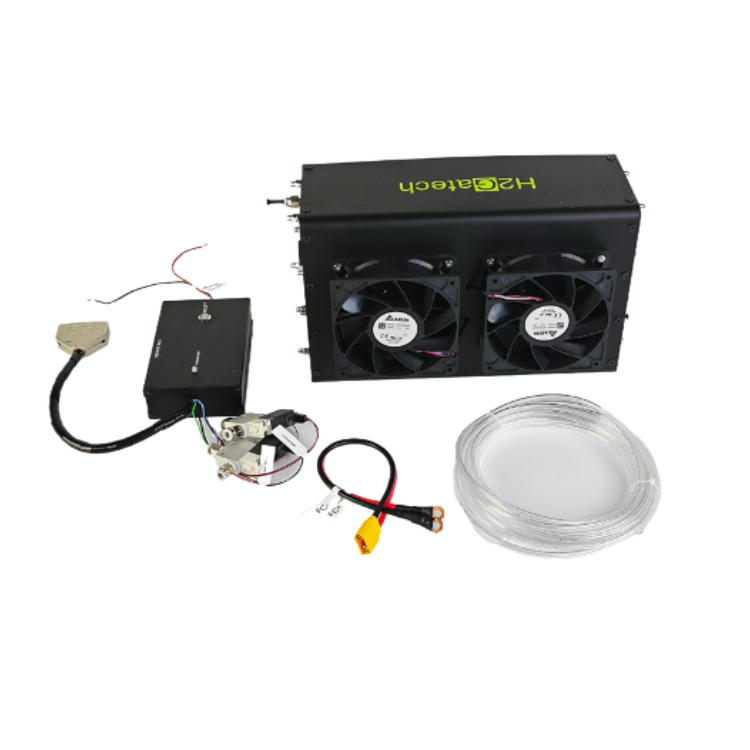

H2Gatech 2000W Fuel Stack Components List:

2000W Fuel cell stack (including fan)
2000W Fuel cell controller
TPU or PTFE tubing
Intake solenoid valve
Pressure sensor
Current sensor

H2Gatech 2000W Fuel Stack Performance

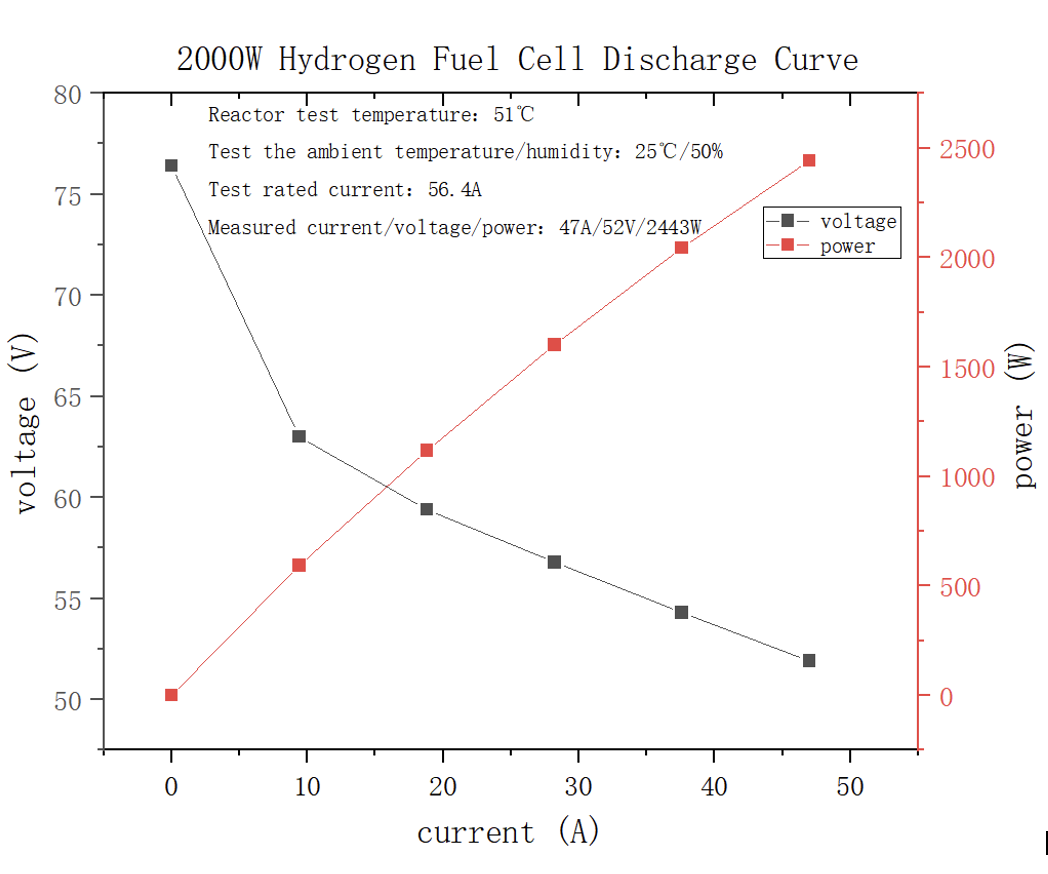

The following polarization curve is an examplary performance for this stack.The H2Gatech 2000W Fuel Cell Stack uses PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.

2000W

Applications of H2Gatech 2000W Fuel Stack

Hydrogen-powered forklifts and material-handling vehicles

Three-wheel delivery vehicles and utility carts

Golf carts and low-speed electric vehicles

Drone ground power and mobile UAV support systems

Outdoor mobile backup power units

Portable hydrogen fuel cell power stations

Fuel Stack Manufacturer

H2Gatech is a professional fuel stack manufacturer that provide customizable hydrogen fuel cell systems from 10W to 6,000W, suitable for a wide range of applications, including hydrogen-powered vehicles, drones, and backup power solutions.High-quality and safe fuel stacks for different needs. If you are looking for a fuel stack for your project, feel free to contact us.


Output Performance
Power2000 W
Operating Voltage40 V – 74 V
Operating Current0 A – 56.4 A
Efficiency> 40%
Fuel
Hydrogen Consumption35 L/min (at 56.4 A)
Hydrogen Purity≥ 99.99% (CO < 1 ppm)
Hydrogen Pressure0.035 MPa – 0.05 MPa
Working Environment
Ambient Temperature0 – 35 ℃
Ambient Humidity10% – 90%
Storage Environment0 – 60 ℃
Physical Parameters
Number of Cells80

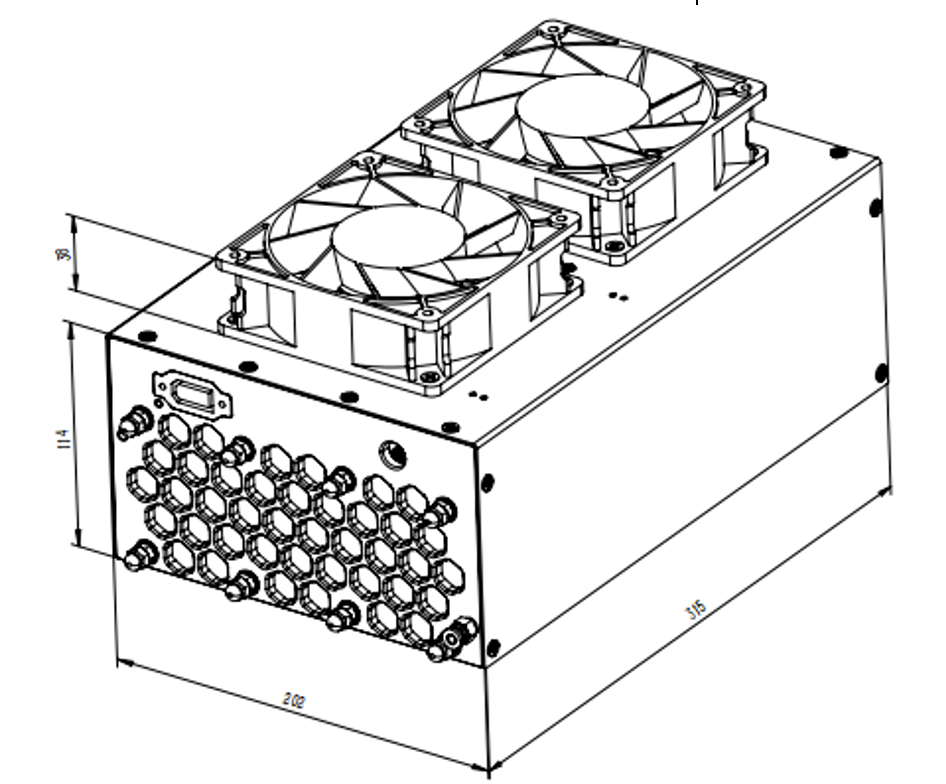

Stack Dimensions152 × 202 × 315 mm
Weight6390 g
