Hydrogen Fuel Cell Stacks

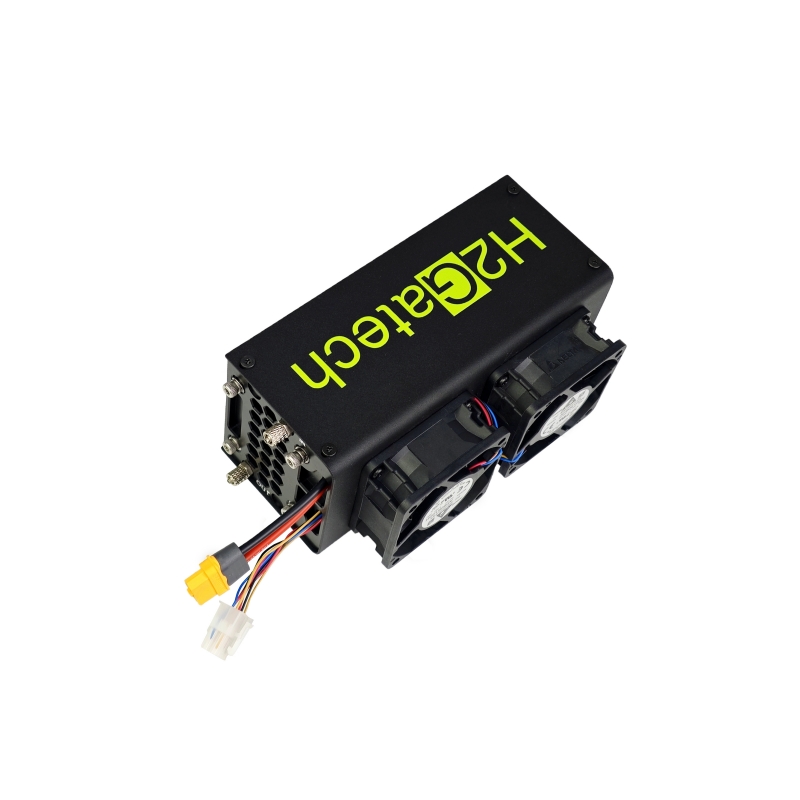

H2Gatech 1000W Fuel Stack

H2Gatech 1000W Hydrogen Fuel Cell Stack is a high-power PEM fuel cell energy system designed for electric mobility, mobile power platforms, and off-grid energy solutions that require robust and continuous power output.

Delivering stable and efficient DC electricity, the 1000W fuel cell is suitable for hydrogen-powered three-wheel logistics vehicles, golf carts, and mobile power supply systems for drones and field equipment. Its clean and quiet operation makes it ideal for applications where low noise, zero emissions, and long operating time are essential.

With a reinforced system structure, advanced active cooling, and a dedicated electronic control unit, the 1000W fuel cell supports extended operation and fast refueling in scenarios where battery capacity, grid access, or frequent charging cycles are limiting factors.

Component List:

Fuel cell stack (including fan)

Fuel cell controller

TPU or PTFE tubing

Intake solenoid valve

Pressure sensor

Current sensor

Get a Quote Get a Quote

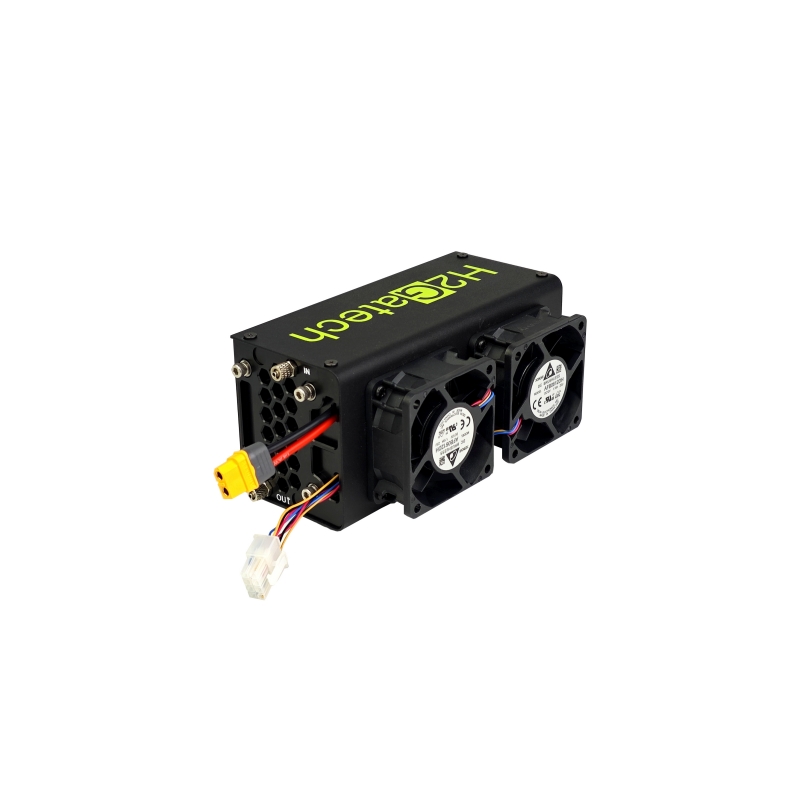

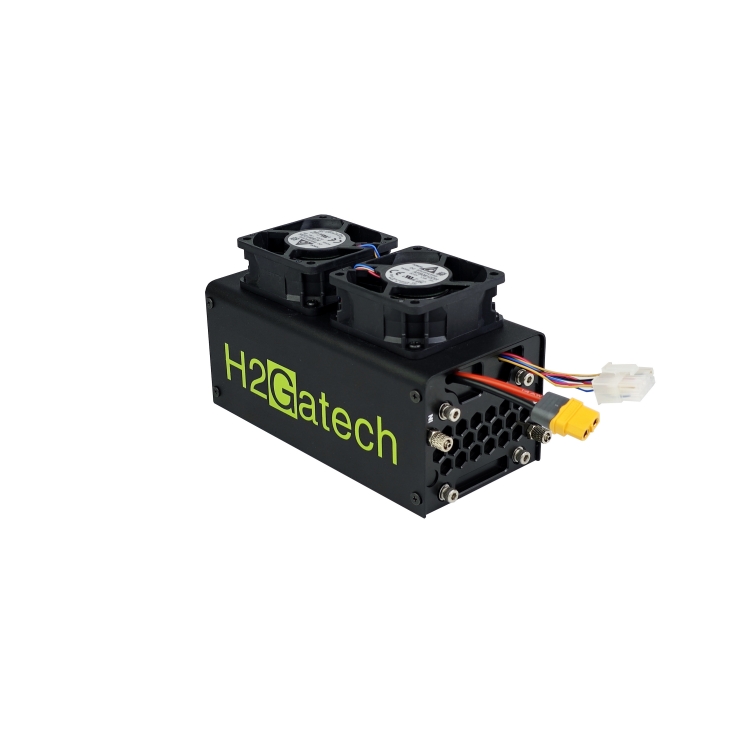

H2Gatech 1000W Fuel Stack

1000W Air Cooled Hydrogen Fuel Cell PEM Fuel Cell

Fuel cells represent an advanced approach to clean power generation, utilizing hydrogen to produce electricity. By converting chemical energy into electrical output through an electrochemical reaction, fuel cells provide high-efficiency performance while operating with zero harmful emissions.

Get a Quote Get a Quote
H2Gatech 1000W Fuel Stack

Number of Cells

This fuel cell stack is composed of 60 fuel cells.

H2Gatech 1000W Fuel Stack

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

H2Gatech 1000W Fuel Stack

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from -5~35° C.

H2Gatech 1000W Fuel Stack

Humidification

This fuel cell stack uses self-humidification.

H2Gatech 1000W Fuel Stack

FC Stack Weight

The stack (including fan and casing) weighs 4715g.

H2Gatech 1000W Fuel Stack

Controller Weight

The weight of the controller is 640g.

H2Gatech 1000W Fuel Stack

System Efficiency

At 12 volts the efficiency of the system is over 40%.

H2Gatech 1000W Fuel Stack

External power supply

It can be provided by H2Gatech or sourced by the customer.

Clean Power Powered by Hydrogen

Fuel cells generate electrical power by directly converting hydrogen’s chemical energy into electricity through an electrochemical process, eliminating the need for combustion. This method delivers high efficiency, low-noise operation, and emission-free performance, producing only water during operation. Hydrogen is a clean and versatile energy carrier. It is abundant, non-toxic, and renewable, making it suitable for a wide range of uses—from portable and backup power systems to transportation and distributed energy solutions for buildings. By adopting hydrogen fuel cell technology, reliable and low-carbon energy becomes a practical and sustainable option.

Get a Quote Get a Quote
H2Gatech 1000W Fuel Stack
H2Gatech 1000W Fuel Stack

Driving Clean Energy with Hydrogen

Fuel cells produce electricity through an electrochemical process that uses hydrogen as fuel, without involving combustion. Traditional power generation methods depend on burning fossil fuels, which inherently causes energy waste and efficiency limitations. In combustion-driven systems, a significant portion of energy is dissipated as heat, noise, and mechanical loss, while carbon emissions cannot be easily reused. Fuel cell technology operates differently by converting hydrogen’s chemical energy directly into electrical power. This enables more efficient energy conversion, clean and emission-free operation, and quiet performance, positioning fuel cells as a cleaner and more sustainable alternative to conventional combustion-based energy technologies.

Get a Quote Get a Quote

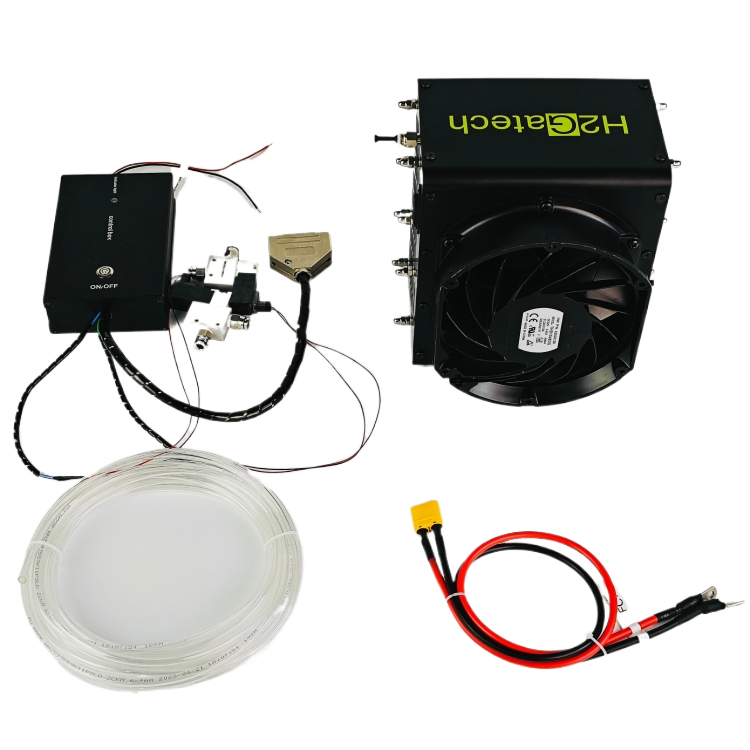

H2Gatech 1000W Fuel Stack Components List:

1000W Fuel cell stack (including fan)

1000W Fuel cell controller

TPU or PTFE tubing

Intake solenoid valve

Pressure sensor

Current sensor

H2Gatech 1000W Fuel Stack Performance

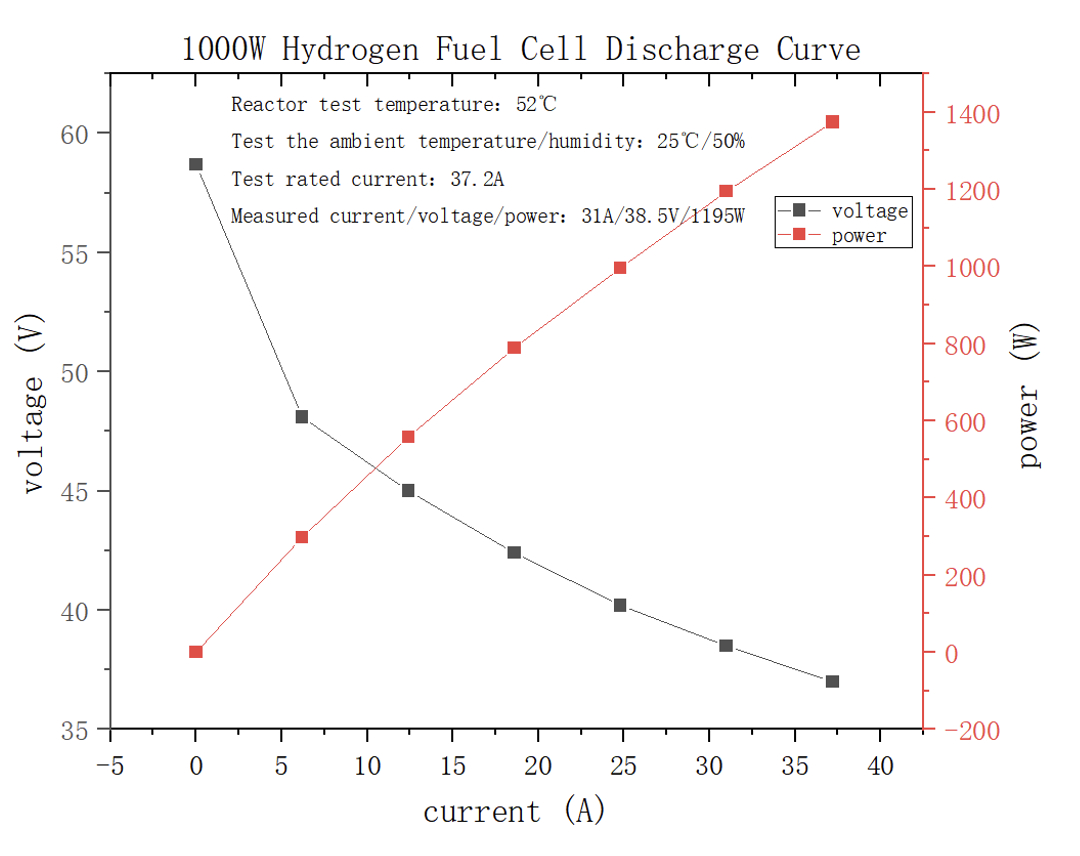

The following polarization curve is an examplary performance for this stack.The H2Gatech 1000W Fuel Cell Stack uses PEM (Proton Exchange Membrane) fuel cell technology to converthydrogen and oxygen directly into electricity through an electrochemical reaction, without combustion.

1000W

Applications of H2Gatech 1000W Fuel Stack

Hydrogen-powered three-wheel logistics vehicles
Golf carts and light utility vehicles
Mobile power supply for UAVs / drones
Portable hydrogen fuel cell power stations
Off-grid and mobile energy systems

Fuel Stack Manufacturer

H2Gatech is your professional source for high-quality fuel cell stacks. We offer safe, efficient, and versatile hydrogen power solutions for educational, commercial, and industrial needs. Ready to elevate your project? Contact H2Gatch today for the world’s most reliable hydrogen fuel cell technology.

Output Performance
Power1000 W
Operating Voltage24 V – 56 V
Operating Current0 A – 37.2 A
Efficiency> 40%
Fuel
Hydrogen Consumption17 L/min (at 37.2 A)
Hydrogen Purity≥ 99.99% (CO < 1 ppm)
Hydrogen Pressure0.035 MPa – 0.05 MPa
Working Environment
Ambient Temperature0 – 35 ℃
Ambient Humidity10% – 90%
Storage Environment0 – 60 ℃
Physical Parameters
Number of Cells60
Stack Dimensions145 × 162 × 261 mm
Weight4715 g
